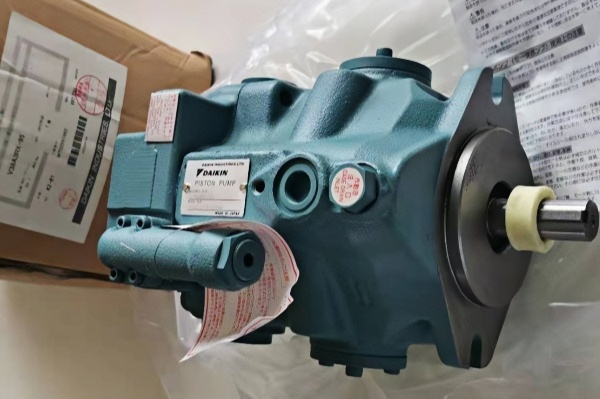

DAIKIN PISTON PUMP V38A3RX-95 Parameter description

Basic parameters and characteristics of DAJIN V38A3RX-95 plunger pump
Core Performance Parameters
Displacement: 38cc (cubic centimeter), consistent with the same series of V38A1RX-95 and V38A2RX-95.
Operating pressure: 95kgf/cm ² under normal working condition and 125kgf/cm ² under high pressure.
Power: 110W (the current parameter shall be determined according to the specific working condition).
Flow: up to 150 L/min under certain conditions.
Suction head: 6m.
Operating temperature range: – 20 ℃ to 100 ℃.
Drive mode: support electric or hydraulic drive, voltage selectable 110V/220V AC (50/60Hz) or 24V DC.
Noise level: lower than 60dB (A), low noise operation in full pressure zone.
Structure and material characteristics
Pump type: V-type variable piston pump, with swash plate angle change design for flow regulation.
Material: cast iron shell, horizontal installation structure, axial flow design.
Impeller type: open impeller, single-stage single-suction design.

Product advantages and application scenarios
Core advantages
High-efficiency and energy conservation: small power loss, slow rise of oil temperature, suitable for small oil tank, reducing system cost.
Low-noise operation: the noise within the full pressure range shall be controlled below 60dB (A), suitable for the environment sensitive to noise.
System integration: support combination of multiple control modes to realize energy saving and miniaturization design.
Reliability: high sensitivity, good stability, long service life, improving the operation reliability of the host.
Typical application fields
Industrial machinery: tool machines, machine tools, forging and pressing equipment.
Forming equipment: plastic forming machine and injection molding machine.
Other scenes: hydraulic system integration, automatic production line and other equipment requiring high pressure stable output.

Precautions and maintenance suggestions
Selection of working medium oil
Viscosity requirements: ISOVG32-68 common working medium oil (R&O) shall be used under the working conditions below 7MPa; Wear-resistant working medium oil shall be used above 7MPa, with viscosity range of 15~400mm ²/s (cSt).
Pollution control: the oil pollution degree shall be kept within NAS9 to avoid pump failure or shortened service life caused by impurities.
Installation and Operating Specification
Shaft center alignment: the eccentricity of transmission shaft and pump shaft shall be ≤ 0.05mm (TIR) to avoid the damage of bearing and oil seal caused by radial force.
Oil temperature control: the operating oil temperature shall be maintained at 0 ～ 60 ℃, and the service life of the seal may be affected if the temperature exceeds the range.
Anti-funterfeiting prompt: there are many fake goods in the market, so it is suggested to ask for physical photos and purchase through formal channels.

Comparison of differences between models of the same series
Model displacement (cc) Maximum working pressure (kgf/cm ²) Main difference point of power
V38A1RX-95 3895 (not specified for high pressure condition) not explicitly configured or different control modes
V38A2RX-95 38 95 (high pressure up to 125) undefined pressure parameters differ from A3
V38A3RX-95 3895 (high voltage up to 125) 110W power and partial performance parameter optimization
